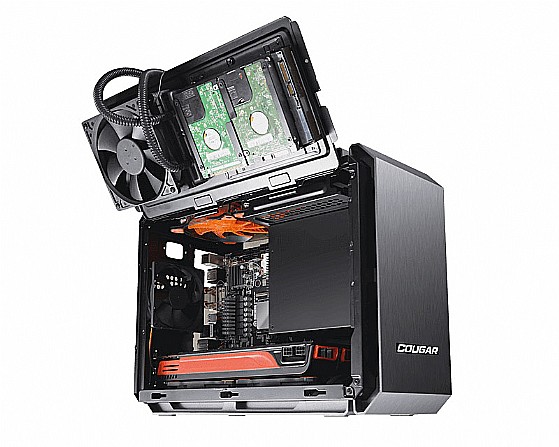

Cougar QBX Mini-ITX Multi Purpose Case
מארז קטנטן עם מקום לספק כוח סטנדרטי וכרטיס מסך באורך של עד 330ממ
-
יצרן: Cougar
-
מקט: QBX
לרכישת מוצר זה התקשרו לקבלת פרטים
חזרו אלי בקשר למוצר זה
Specifications
| Case Type | Mini-ITX Case | |
|---|---|---|
| Motherboard Type | Mini-ITX | |
| Dimension (WxHxD) | 7.01 x 11.46 x 15.12 (inch) 178 x 291 x 384 (mm) |
|
| Optical Disk Drive (ODD) Type | Supports ONLY Slot Loading Slim ODD | |
| 3.5" Internal Drive Bay (HDD) | 1 | |
| 2.5" Drive Bay (HDD/SSD) | 4 | |
| Expansion Slots (For example for Graphics Card) |
2 | |
| I/O Panel | 2 x USB3.0 / HD audio | |
| Cooling System Max. Supported Installation: 7 Fans |
Front | 80mm Fan x 1 (optional) |
| Top | 120mm Fans x 2 (optional) | |
| Rear | 90mm Fan x 1 (pre-installed) | |
| Bottom | 120mm Fans x 2 (optional) | |
| Left Side | 120mm Fan x 1 or 240mm radiator with a single 120mm fan or 120mm radiator with a 120mm fan |
|
| Cable management system | Cable feedthrough on the motherboard tray for easily routing and hiding cables. | |
| Fan Filter (Cleanable) | 1 x Bottom Filter (pre-installed and removable) 1 x Front Filter (included, installed by the user) |
|
| Water cooling support | Left Side：240mm radiator with a single 120mm fan or Left Side：120mm radiator with a 120mm fan |
|
| Max. Graphic card Length | 350mm (Support for High End Graphics Cards) | |
| Max. CPU Cooler Height | 105mm | |
| PSU | PS2 ATX Type (up to 140mm long) | |
| Compatible PSU | supports the following COUGAR PSU series: A Series and STX Series. |
|
