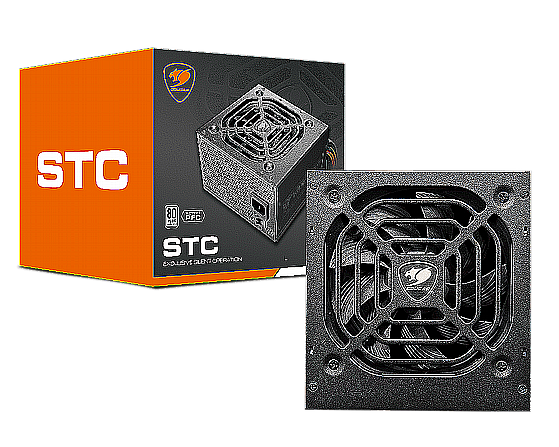

ספק כח COUGAR STC-650 80 PLUS 650W
Rigid Reliability, Extreme Silence
COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.
COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.
-
יצרן: Cougar
-
מקט: CP-STC650
-
ספק: פייב אקסיטס
לרכישת מוצר זה התקשרו לקבלת פרטים
חזרו אלי בקשר למוצר זה
Specifications
| Product Name | AC Input | DC Output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| STC 400 | 200-240V~ 50Hz / 3A |
15A | 15A | 30A | 0.3A | 2A | 400W |
| 105W | 360W | ||||||
| STC 500 | 200-240V~ 50Hz / 4A |
16A | 18A | 38A | 0.3A | 2.5A | 500W |
| 110W | 456W | ||||||
| STC 550 | 200-240V~ 50Hz / 5A |
16A | 18A | 42A | 0.3A | 2.5A | 550W |
| 110W | 504W | ||||||
| STC 600 | 200-240V~ 50Hz / 5A |
18A | 20A | 49A | 0.3A | 3A | 600W |
| 130W | 588W | ||||||
| STC 650 | 200-240V~ 50Hz / 6A |
18A | 20A | 52A | 0.3A | 3A | 650W |
| 130W | 624W | ||||||
| STC 700 | 200-240V~ 50Hz / 6A |
20A | 20A | 52.5A | 0.3A | 3A | 700W |
| 130W | 630W | ||||||
| STC 750 | 200-240V~ 50Hz / 6A |
20A | 20A | 60A | 0.3A | 3A | 750W |
| 120W | 720W | ||||||
| Connector Color Cables |
MB | CPU | P-ATA | S-ATA | PCI-E |
| Pin | 24(20+4) | 8(4+4) | 4 | 5 | 8(6+2) |
| Length (mm) | 450 | 650 | 450 | ||
| STC 400 | 1 | 1 | 1 | 4 | 1 |
| STC 500 | 1 | 1 | 2 | 5 | 2 |
| STC 550 | 1 | 1 | 2 | 5 | 2 |
| STC 600 | 1 | 1 | 2 | 6 | 2 |
| STC 650 | 1 | 1 | 2 | 6 | 2 |
| STC 700 | 1 | 2 | 3 | 8 | 4 |
| STC 750 | 1 | 1 | 3 | 6 | 4 |
